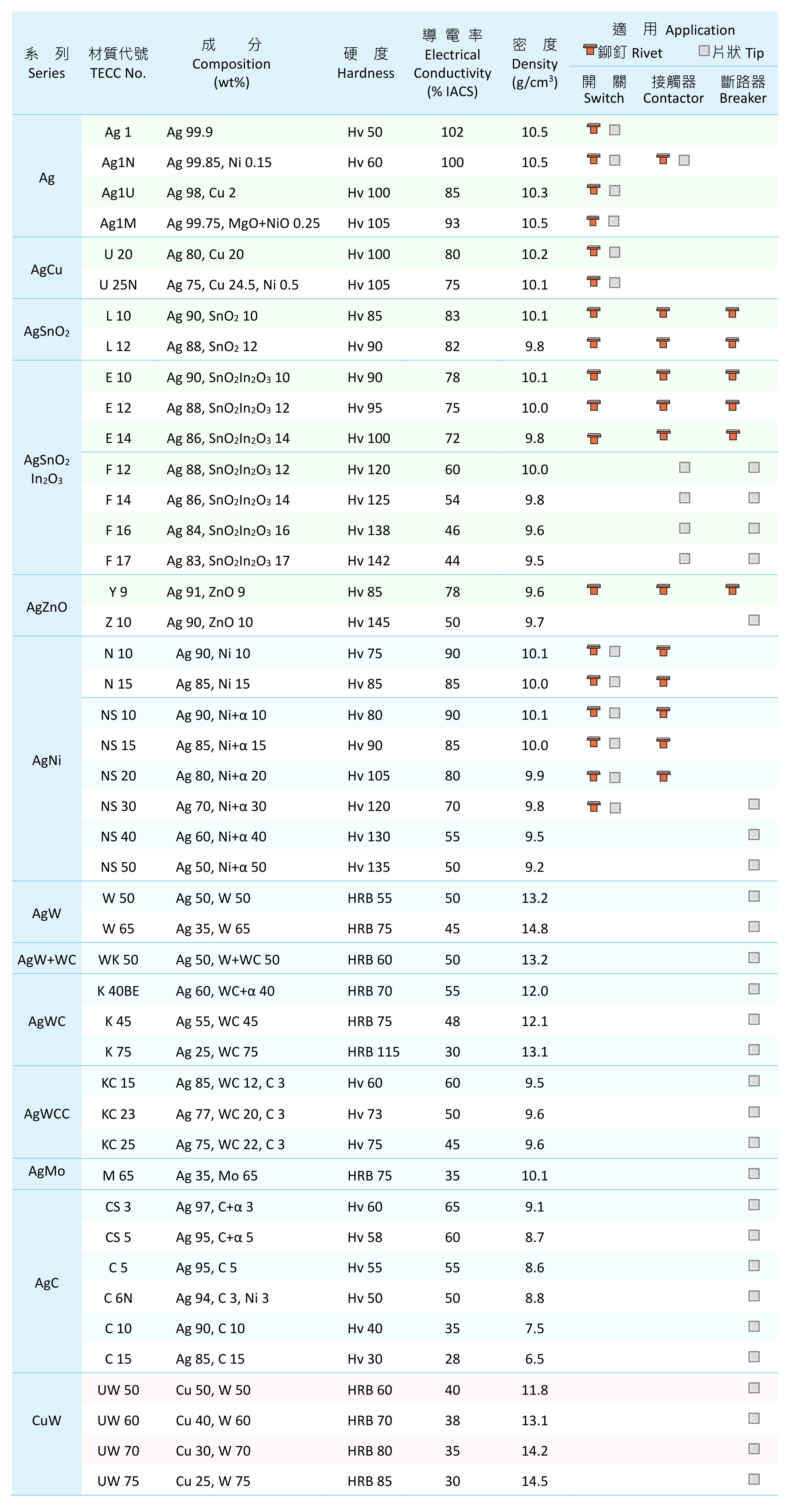

※電氣接點材質的特性：
※電氣接點材質的特性：
| 系 列 Series |
材質代號 TECC No. |
成 分 Composition (wt%) |
硬 度 Hardness |
導 電 率 Electrical Conductivity (% IACS) |
密 度 Density (g/cm3) |
適 用 Application 鉚釘Rivet  片狀Tip |
||
| 開 關 Switch |
接觸器
Contactor
|
斷路器
Breaker |
||||||
| Ag | AG-1 | Ag 99.9 | Hv 50 | 102 | 10.5 | |
||
| AG-1N | Ag 99.85, Ni 0.15 | Hv 60 | 100 | 10.5 | |
|
||
| AG-1U | Ag 98, Cu 2 | Hv 100 | 85 | 10.3 | |
|||
| AG-1M |
Ag 99.75, MgO+NiO 0.25
|
Hv 105 | 93 | 10.5 | |
|||
| AgCu | U-20 | Ag 80, Cu 20 | Hv 115 | 80 | 10.2 | |
||
| U-25N | Ag 75, Cu 24.5, Ni 0.5 | Hv 100 | 75 | 10.1 | |
|||
| AgSnO2 | L-10 | Ag 90, SnO2 10 | Hv 85 | 83 | 10.1 | |||
| L-12 | Ag 88, SnO2 12 | Hv 90 | 82 | 9.8 | ||||
| AgSnO2 In2O3 |
E-10 | Ag 90, SnO2In2O3 10 | Hv 90 | 78 | 10.1 | |||
| E-12 | Ag 88, SnO2In2O3 12 | Hv 95 | 75 | 10.0 | ||||
| E-14 | Ag 86, SnO2In2O3 14 | Hv 100 | 72 | 9.8 | ||||
| F-12 | Ag 88, SnO2In2O3 12 | Hv 120 | 60 | 10.0 | ||||
| F-14 | Ag 86, SnO2In2O3 14 | Hv 125 | 54 | 9.8 | ||||
| F-16 | Ag 84, SnO2In2O3 16 | Hv 138 | 46 | 9.6 | ||||
| F-17 | Ag 83, SnO2In2O3 17 | Hv 142 | 44 | 9.5 | ||||
| AgZnO | Y-9 | Ag 91, ZnO 9 | Hv 85 | 78 | 9.6 | |||
| Z-10 | Ag 90, ZnO 10 | Hv 145 | 50 | 9.7 | ||||
| AgNi | N-10 | Ag 90, Ni 10 | Hv 75 | 90 | 10.1 | |||
| N-15 | Ag 85, Ni 15 | Hv 85 | 85 | 10.0 | ||||
| NS-10 | Ag 90, Ni+α 10 | Hv 80 | 90 | 10.1 | ||||
| NS-15 | Ag 85, Ni+α 15 | Hv 90 | 85 | 10.0 | ||||
| NS-20 | Ag 80, Ni+α 20 | Hv 105 | 80 | 9.9 | ||||
| NS-30 | Ag 70, Ni+α 30 | Hv 120 | 70 | 9.8 | ||||
| NS-40 | Ag 60, Ni+α 40 | Hv 130 | 55 | 9.5 | ||||
| NS-50 | Ag 50, Ni+α 50 | Hv 135 | 50 | 9.2 | ||||
| AgW | W-50 | Ag 50, W 50 | HRB 55 | 50 | 13.2 | |||
| W-65 | Ag 35, W 65 | HRB 75 | 45 | 14.8 | ||||
| AgW+WC | WK-50 | Ag 50, W+WC 50 | HRB 60 | 50 | 13.2 | |||
| AgWC | K-40BE | Ag 60, WC+α 40 | HRB 70 | 55 | 12.0 | |||
| K-45 | Ag 55, WC 45 | HRB 75 | 48 | 12.1 | ||||
| K-75 | Ag 25, WC 75 | HRB 115 | 30 | 13.1 | ||||
| AgWCC | KC-15 | Ag 85, WC 12, C 3 | Hv 60 | 60 | 9.5 | |||
| KC-23 | Ag 77, WC 20, C 3 | Hv 73 | 50 | 9.6 | ||||
| KC-25 | Ag 75, WC 22, C 3 | Hv 75 | 45 | 9.6 | ||||
| AgMo | M-65 | Ag 35, Mo 65 | HRB 75 | 35 | 10.1 | |||
| AgC | CS-3 | Ag 97, C+α 3 | Hv 60 | 65 | 9.1 | |||
| CS-5 | Ag 95, C+α 5 | Hv 58 | 60 | 8.7 | ||||
| C-5 | Ag 95, C 5 | Hv 55 | 55 | 8.6 | ||||
| C-6N | Ag 94, C 3, Ni 3 | Hv 50 | 50 | 8.8 | ||||
| C-10 | Ag 90, C 10 | Hv 40 | 35 | 7.5 | ||||
| C-15 | Ag 85, C 15 | Hv 30 | 28 | 6.5 | ||||
| CuW | UW-50 | Cu 50, W 50 | HRB 60 | 40 | 11.8 | |||
| UW-60 | Cu 40, W 60 | HRB 70 | 38 | 13.1 | ||||
| UW-70 | Cu 30, W 70 | HRB 80 | 35 | 14.2 | ||||
| UW-75 | Cu 25, W 75 | HRB 85 | 30 | 14.5 | ||||
